Technical Specifications
Brand: Schiller
Model: Graphnet ts
Patient Age Group: Neonatal, Pediatric, Adult
Mounting Type: ICU
Display Type: 12-inch Touchscreen
Ventilation Modes: APRV, MMV + Pressure Support, PSV + Assured Volume
Flow Trigger Sensitivity: 0.2–15 L/min
Pressure Trigger Sensitivity: 0.5–20 cm H₂O
Controlled Pressure (PCV): 2–100 cm H₂O
Support Pressure (PSV): 0–100 cm H₂O
Air Pressure Supply Range: 3.5–7 bar (approx. 50–100 psi)
Working Pressure: 2.8 bar (approx. 40 psi)
Power Source: Electric

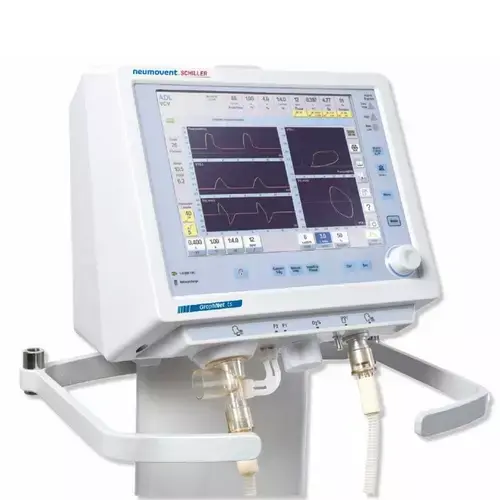

Schiller Graphnet ts Ventilator & Neonate Ventilator
The Schiller Graphnet ts is a versatile and advanced ICU ventilator designed to meet the respiratory needs of neonates, pediatric, and adult patients. With precise control over pressure and flow, a 12-inch touchscreen interface, and comprehensive ventilation modes including APRV and PSV with assured volume, this device ensures safe, efficient, and responsive ventilation across all clinical environments.
-
Suitable for Neonatal, Pediatric, and Adult patients
-
12-inch intuitive touchscreen display
-
Advanced ventilation modes including APRV, MMV+PS, PSV with Assured Volume
-
Flow-triggered and pressure-triggered modes for responsive breathing assistance
-
Robust ICU mounting design for stable, long-term use
-
High-pressure compatibility: supports air pressure up to 7 bar
-
Operates with reliable electric power supply
-
