Technical Specifications:
Product Name: Mindray SynoVent E5 Ventilator
Brand: Mindray
Model: SynoVent E5
Patient Age Group: Adult, Paediatrics & Neonatal
Tidal Volume:
Adult: 100 to 2000 mL
Pediatric: 20 to 300 mL
Ventilation Modes:
V-A/C, P-A/C, V-SIMV, P-SIMV, Duolevel, CPAP, PSV, NIV
(APRV, PRVC – optional)Respiratory Rate: 1 to 150 bpm
Peak Airway Pressure: 0 to 100 cm H₂O
SIMV Rate: 1 to 60 rpm
Mounting Type: Trolley + Compressor
I:E Ratio: 4:1 to 1:10
Touch Screen: 12.1-inch color TFT, 180° rotation, 45° tilt
Power Supply:
220 ~ 240 VAC, 50/60 Hz, 10A
100 ~ 120 VAC, 50/60 Hz, 15A
Battery Type: Built-in Li-ion battery, 11.1 VDC, 4500 mAh
Battery Backup:
90 min (1 battery)
180 min (2 batteries)
Number of Batteries: 1 or 2
Dimensions: 47 x 43 x 50 cm
Weight: 25 kg (unit) + 23 kg (trolley)

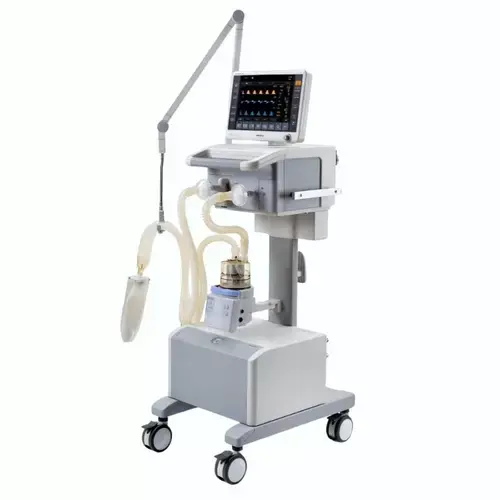

Mindray Synovent E5 Ventilator
The Mindray SynoVent E5 is an advanced, versatile ventilator engineered to support a wide range of patients- from neonates to adults-across invasive and non-invasive ventilation settings. Designed for critical care, transport, and sub-acute environments, it delivers exceptional performance with its comprehensive ventilation modes, intelligent control features, and user-friendly interface.
-
Comprehensive patient support: Suited for adult, pediatric, and neonatal ventilation.
-
Advanced ventilation modes: Supports V-A/C, P-A/C, V-SIMV, P-SIMV, Duolevel, CPAP, PSV, NIV, with optional APRV and PRVC modes.
-
High-performance display: Features a 12.1-inch color TFT touch screen that can rotate 180° and tilt 45° for ergonomic viewing.
-
Flexible mounting: Includes trolley and built-in compressor for mobility and continuous care.
-
Reliable power backup: Built-in Li-ion battery provides up to 180 minutes of backup with two fully charged batteries.
-
Wide respiratory range: Can handle respiratory rates from 1 to 150 bpm and pressure up to 100 cm H₂O.
-
Compact and mobile: Lightweight design with detachable screen and integrated trolley for ease of use in ICU and intra-hospital transport.
-
