Technical Specifications
Physical Characteristics
Dimensions: 350 mm × 300 mm × 104 mm
Weight: Approx. 3.0 kg
Display
Type: 5.6” Color TFT-LCD
Resolution: 640 × 480 (RGB)
Ultrasound (FHR Detection)
Technique: Pulse Doppler with Autocorrelation
Pulse Repetition Rate: 2 kHz
Pulse Duration: 92 µs
Frequency: 1.0 MHz ±10%
FHR Range: 50 – 240 bpm
FHR Accuracy: ±1 bpm
FHR Resolution: 1 bpm
TOCO
Measurement Range: 0 – 100%
Resolution: 1%
Zero Mode: Auto / Manual
Non-linear Error: ≤10%
DECG
Technique: Peak-to-Peak Detection
FHR Range: 30 – 240 bpm
Accuracy: ±1 bpm
Input Impedance: >10 MΩ (Differential), >20 MΩ (Common Mode)
Resolution: 1 bpm
IUP
Range: 0 – 100 mmHg
Resolution: 1%
Zero Mode: Auto / Manual
Auto Fetal Movement
Technique: Pulse Doppler
Range: 0% – 100%
Resolution: 1%
Manual Fetal Movement
Method: Remote marker input
Recorder
Type: Thermal printer
Paper: Z-fold thermosensitive paper (150 mm)
Real-time Printing Speeds: 1, 2, 3 cm/min
Stored Trace Printing: Up to 15 mm/sec
Resolution: 8 dots/mm
Recorded Info: FHR1, FHR2, TOCO, AFM, fetal movement, events, date/time, speed, patient ID/name, and more

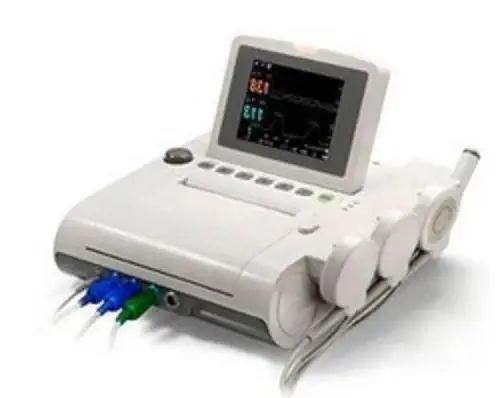

EDAN Fetal Monitor F3
This advanced Color TFT-LCD Fetal Monitor is a lightweight, portable solution ideal for obstetrical departments in clinics and hospitals. It provides a full suite of external monitoring capabilities, including Fetal Heart Rate (FHR), TOCO, and Fetal Movement, all displayed on a vivid 5.6-inch color screen. Designed for convenience and precision, it's also suitable for outpatient services and mobile use.
-
Bright 5.6-inch Color TFT-LCD Display for clear waveform visualization
-
Lightweight & Portable – Perfect for outpatient and bedside monitoring
-
Comprehensive External Monitoring – FHR, TOCO, Auto and Manual Fetal Movement
-
High Accuracy & Sensitivity – Uses advanced Doppler and autocorrelation techniques
-
Supports DECG and IUP internal monitoring
-
Real-Time & Stored Data Printing with customizable speeds
-
Automatic/Manual Zeroing for TOCO and IUP
-
Remote Marker for manual fetal movement input
-
Thermal Printer with Z-fold paper support
-
