Specifications:
ECG leads: 12-lead simultaneous acquisition
Sampling rate: 1000 Hz
A/D conversion: 12-bit
Frequency response: 0.05Hz – 150Hz
CMRR: >100 dB with filtering
Paper width: 80 mm; print speed: 5–50 mm/s
Sensitivity: 2.5–40 mm/mV
Power supply: AC and DC with built-in 7.4V 3700mAh lithium battery
Battery backup: Prints up to 150 ECGs or 90 mins continuous
Storage: >1000 ECG reports
Weight: 1.6 kg
Dimensions: Compact & portable form factor

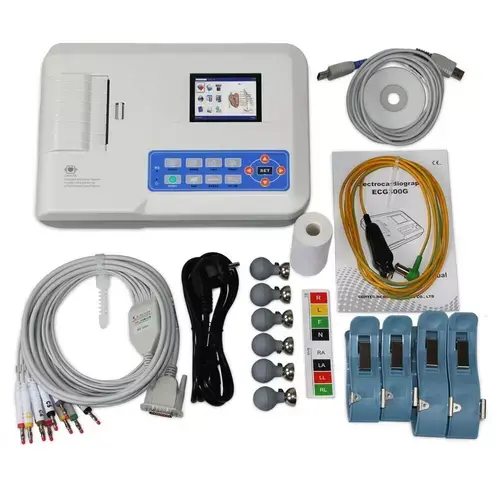

Contec 300g Digital 3 Channel ECG Machine
The Contec ECG300G is a compact, high-performance 12-lead ECG machine designed for accurate cardiac monitoring. Featuring a vivid 3.5" TFT screen, real-time waveform preview, thermal printing, and built-in analysis, it's ideal for use in hospitals, clinics, ambulances, and remote medical setups.
-
3.5" TFT color screen for real-time ECG waveform preview
-
12-lead simultaneous ECG acquisition with signal filters (AC, baseline, EMG)
-
Adjustable print formats: 3, 6, or 12 leads; periodic/manual options
-
Auto-interpretation of ECG parameters with diagnosis
-
Dual power: Rechargeable lithium battery + AC/DC input
-
Multilingual support (English, Chinese, Spanish, Turkish)
-
PC connectivity via ECG-Sync software (optional)
-
Lightweight and portable design
-
